Distribution Panels
Final stage of installation finishes with proper cable connections at desired ends, proper physical check of the DG set before conducting engine crank tests, followed by commissioning and synchronization of DG Set as per necessity. Commissioning of the generator is done by our commissioning engineer along with extended co-operation from the buyer s side.

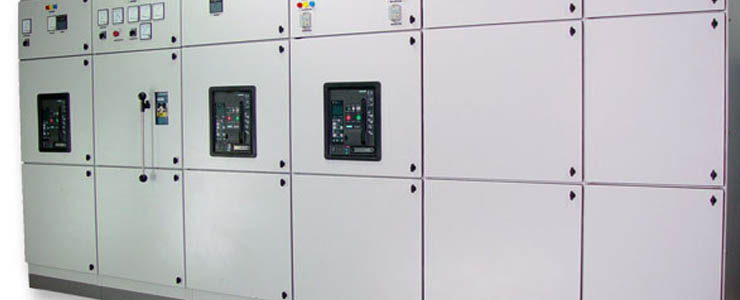

Distribution Panels normally comprise of either ACB/MCCB as the incomer and the MCCB/SFU/MCB as the outgoing feeders. The distribution Boards are a free-standing type or the wall mounting type. Distribution boards can be offered in compartmentalized or not compartmentalized design with single or double door configuration. Distribution boards have the adequate space for the cable termination. Terminals are shrouded for safety.
SALIENT FEATURES- DISTRIBUTION PANELS:
- Designed to meet the requirement of IS-8623 on Factory built assemblies.
- Flexible construction allows the positioning of the bus bar at the top or bottom.
- Bus bars and vertical risers tested for 50KA for a sec.
- DMC/SMC reinforced FRP material for bus bars supports.
